COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

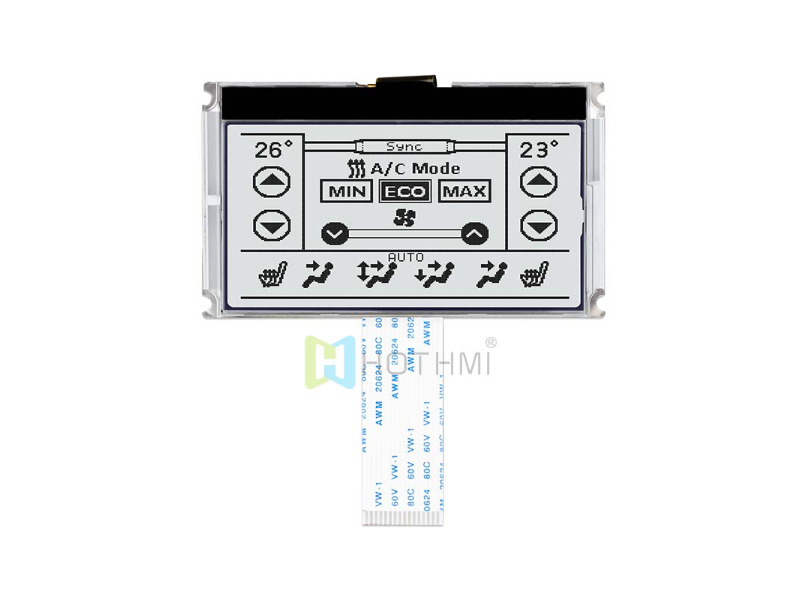

| 2.9 Inch 240X120 Graphic COG LCD Module FSTN+ Display With White Backlight UC1608/HTM240120B-31W-N3P-V02 | COG | 240x120 |
|
84.0x50.0x6.6 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 12H | Backlight color optional | FPC-16PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1608 | |

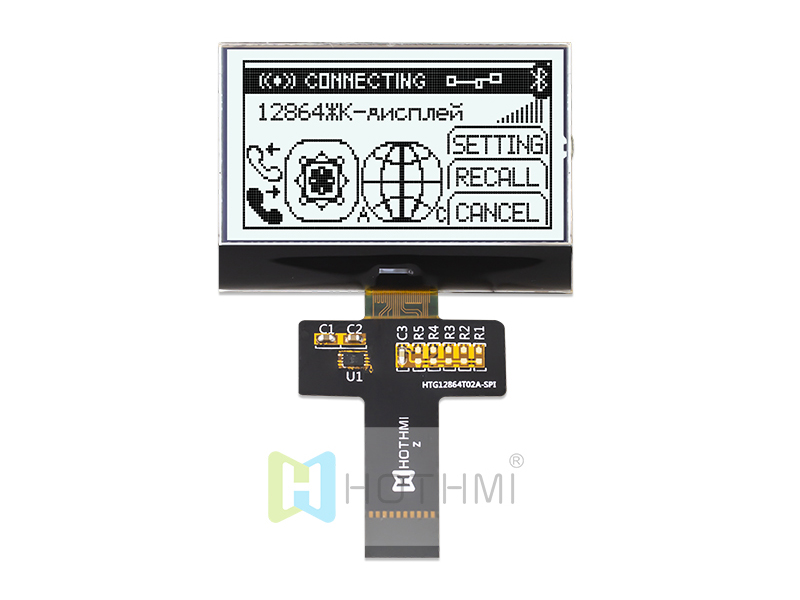

| 128x64 Russian lexicon Graphics COG LCD FSTN+ display with white side backlight HTG12864T02A-31W-SPI-FONT | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 10pin | SPI | With Chinese, English text library | -20~70℃ | 3.3V | ST7567 | ||

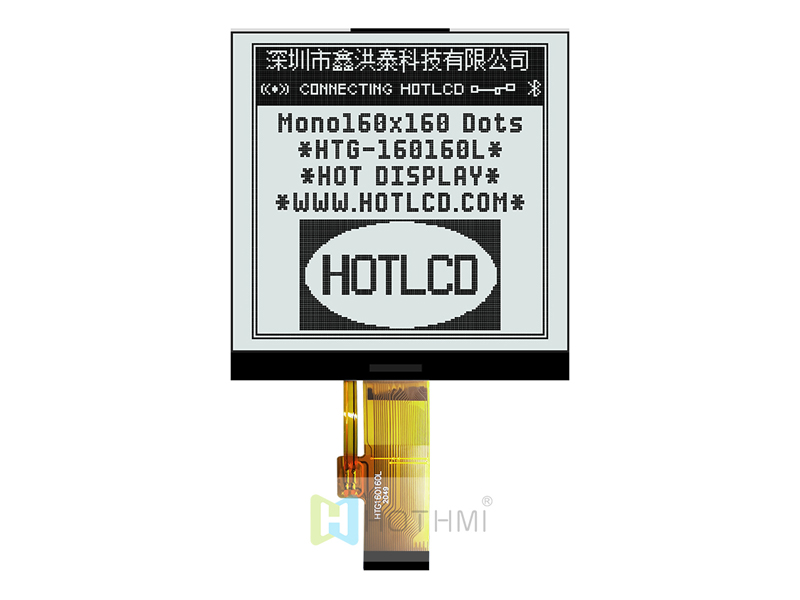

| 160x160 Graphic COG LCD | FSTN+ Display with White Side Backlight HTG160160L-31W-34C05-V01 | COG | 160x160 |
|
88.0x93.0x5.2 | 84x81.5 | 75.18x75.18 | 0.47x0.47 | 6H | 34pin | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1698 | ||
| 128x64 COG LCD Graphics Display Module ST7567 Controller With White Light HTG12864I01A-MCU8080 | COG | 128x64 |
|
71.3x52.2x5.3 | 65.5X38 | 60.775x32.935 | 0.52x0.47 | 6H | 20pin | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7567 | ||
| 128x64 graphic COG LCD module ST7565R with side white backlight HTG12864-124 | COG | 128x64 |
|
71.2x48.1x4.85 | 66.5x38.0 | 3.38 | 0.52x0.48 | 6H | 白光 | 36pin | MCU | -20~70℃ | 3.3V | ST7565R | ||
| HTG12864N01A-MCU8080 | COG | 128x64 |
|
67.8x42.0x5.3 | 63.0x33.0 | 55.01x27.49 | 6H | WHITE | FPC-20PIN | MCU | -20~70℃ | 3.3V | ST7567 | |||
| HTG12864T01A-MCU8080 | COG | 128x64 |
|
53.2x37.8x4.6 | 49.2x27.0 | 40.92x24.28 | 6H | 白光 | FPC-20PIN | MCU | -30~80℃ | 3.3V | ST7567 | |||

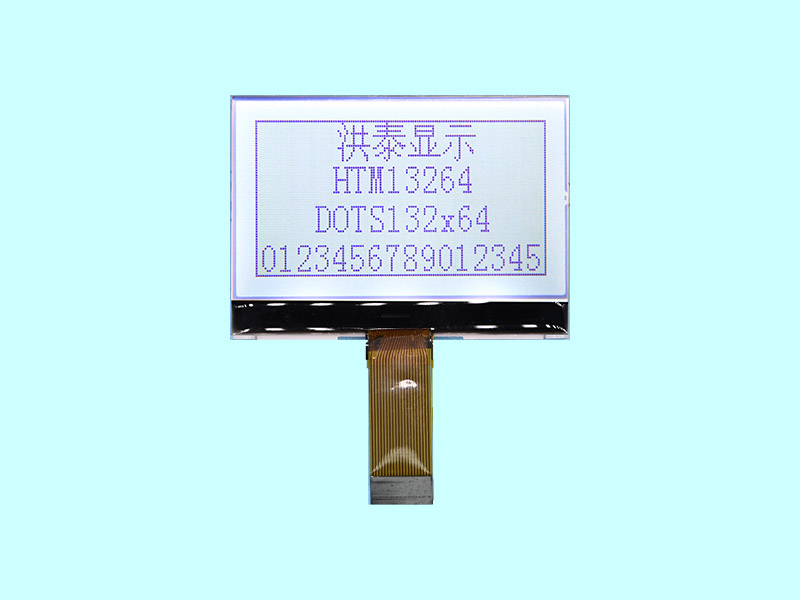

| HTG13264C01A-MCU8080 | COG | 132x64 |
|
57.5x41.7x4.3 | 54.0x30.2 | 48.81x26.21 | 6H | 白光 | FPC-20PIN | MCU | -20~70℃ | 3.3v | ST7567 | |||
| HTG12864I01A-MCU8080 | COG | 128x64 |
|
71.3x52.2x5.3 | 65.5x38.0 | 60.77x32.93 | 6H | 白光 | FPC-20PIN | MCU | -20~70℃ | 3.3V | ST7567 | |||
| 128x64 COG LCD graphics display module black and white screen ST7567 white light HTG12864C01A-MCU8080 | COG | 128x64 |
|
40.8x33.1x4.2 | 36.0x23.5 | 33.25x20.45 | 6H | 白光 | FPC-20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3v | ST7567 |
