The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

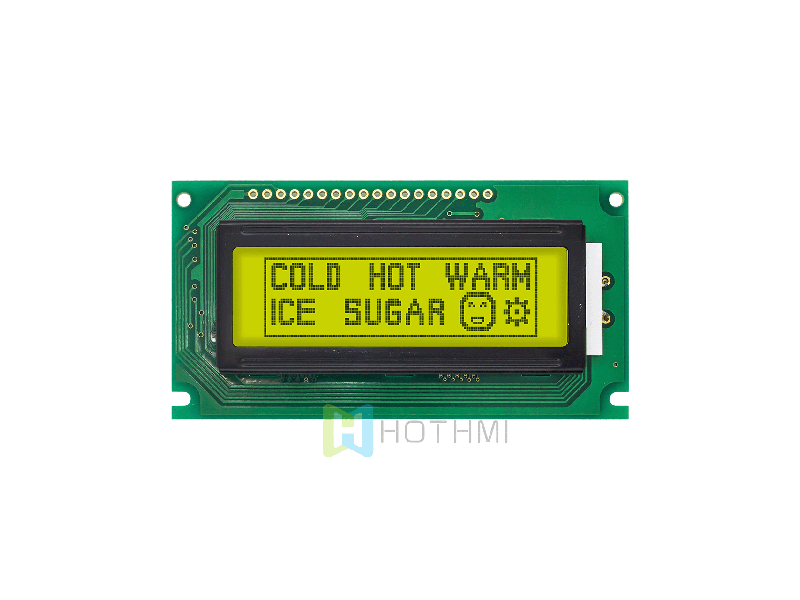

| 2.5"122X32 monochrome graphic LCD|DFSTN- transflective display| ST7920 controller HTM12232Z-41W-A5P | Graphic LCD Module | 122x32 |
|
84.0x44.0x13.9 | 60.0x18.0 | 48.76x14.36 | 0.41x0.36 | 6H | white | 24PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7920 | |

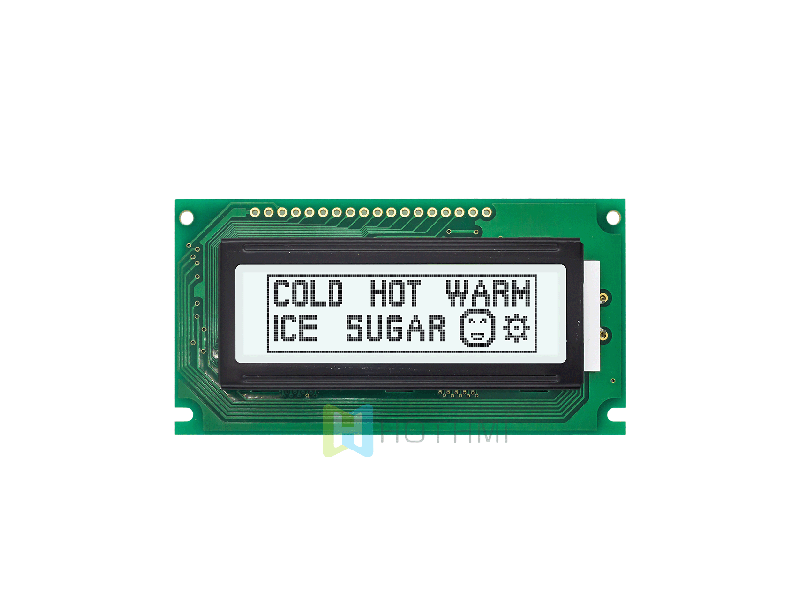

| 2.5"122X32 monochrome graphic LCD display | STN (-) display with white side backlight | Arduino HTM12232Z-25W-A5P | Graphic LCD Module | 122x32 |
|
84.0x44.0x13.9 | 60.0x18.0 | 48.76x14.36 | 0.41x0.36 | 6H | white | 24PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7920 | |

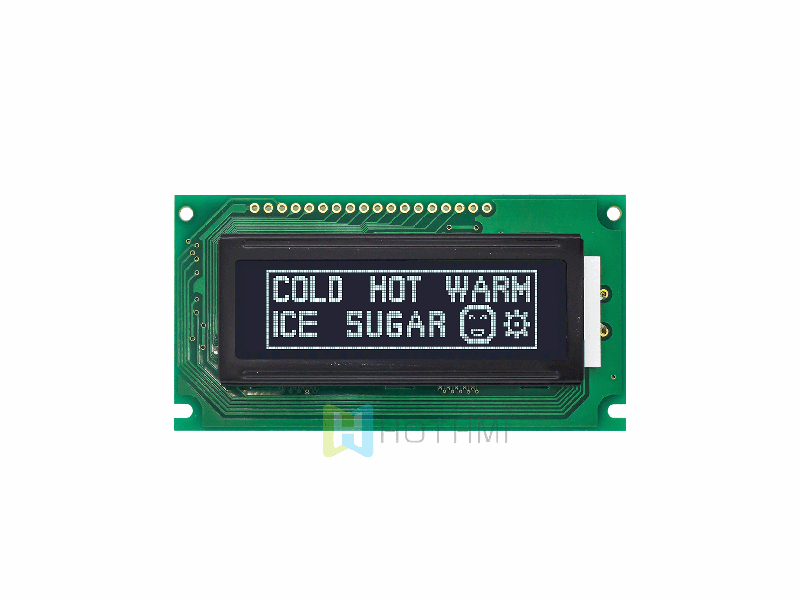

| 2.5"122X32 Monochrome Graphic LCD Module | FSTN+ Transflective Display HTM12232Z-31W-A5P | Graphic LCD Module | 122x32 |
|
84.0x44.0x13.9 | 60.0x18.0 | 48.76x14.36 | 0.41x0.36 | 6H | white | 24PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7920 | |
| 2.5"122X32 Graphics Monochrome LCD Module | STN+ Display with Yellow-Green Side Backlight | Arduino HTM12232Z-01Y-A5P | Graphic LCD Module | 122x32 |
|
84.0x44.0x13.9 | 60.0x18.0 | 48.76x14.36 | 0.41x0.36 | 6H | YG | 24PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7920 | |
| 240X160 Graphic LCD Module FSTN Positive Display With White Backlight ST7529 HTM240160P-31W | COB LCD Module | 240x160 |
|
84.5x71x5.5 | 77.5x48 | 77.42x44.96 | 0.261x0.261 | 6H | 16pin | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7529 | ||
| 132X64 Graphic COG LCD Module | FSTN + Display /HTM-COG13264C01A-SPI | LCM | 132x64 |
|
66x56.2x5.5 | 61x44.15 | 132x64 | 0.37x0.41 | 6H | 12pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7567 | ||
| 128x64 Graphic LCD Module | STN+BLUE Display with White Side Backlight and Negative Voltage/HTM12864-122 | LCM | 128x64 |
|
93x70x13.5 | 60.77x32.93 | 128x64 | 0.48x0.51 | 6H | 20pin | SPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7567 | ||
| 132*32 LCM Graphic/HTM13232A | Graphic LCM | 132x32 |
|
80.0x34.99x8.0 | 64.60x18.98 | 60.68x14.68 | 0.46x0.46 | 6H | white | 18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7565R | |
| 128*64 點(diǎn)陣液晶模組/HTM12864D | COB | 128x64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.44 | 6H | 白光 | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0v | ||
| 256x128 LCM Graphic/HTM256128C | Graphic LCM | 256x128 |
|
147.0x116.0x14.6 | 114.0x64.0 | 127.0x70.0 | 0.47x0.47 | 6H | WHITE | 16PIN | MCU | -20~70℃ | 5.0v |
